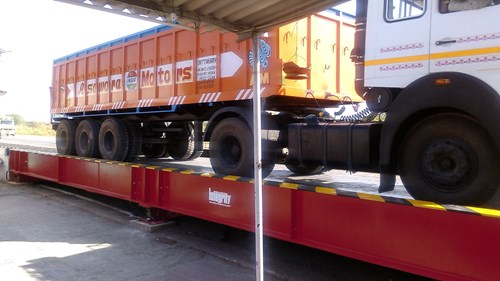

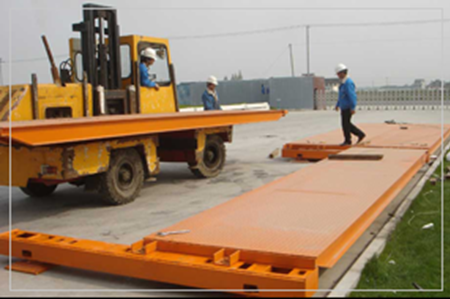

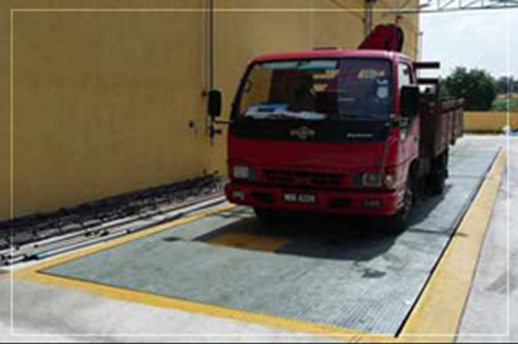

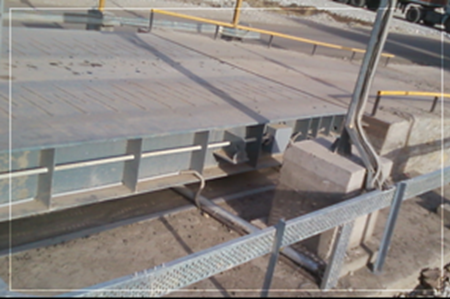

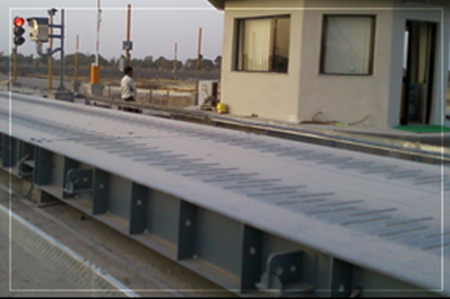

Introducing Rice Lake’s Integrity Series, heavy-duty, modular road-weighbridges built to last for many years to come. Integrity weighbridges use more ISMB I-beams and steel than competing models. Modular sections can be easily installed as a surface or pit mount.

The Integrity Series comes standard with Rice Lake’s patented G-Force self-check-ing mounting system or a traditional compression type load-cell mount. Either way, at just 419 mm, Integrity weighbridges are a low-profile answer to almost any weighing need. Anti-skid surface strips, load-cell access holes, and standard-sized manhole covers put Integrity at the top of the market for ease of maintenance. Crafted with care and designed with you in mind. It’s the reason Rice Lake scales have the reputation they do, and the reason so many customers trust our products throughout the world. More steel. More ruggedness. More pride. The strongest weighbridges on earth.

Integrity Series WIM

Rice Lake India’s vehicle scale systems set the industry standard with innovative designs that provide reliable performance under the most demanding conditions. The Integrity Series is the strongest in-motion weighbridge, using the latest Finite Element Analysis (FEA) technology to give users the longest lasting durability for generations. The WIM is manufactured in accordance to ISO 9001 standards and provides faster, more accurate weighments.

What is the WIM?

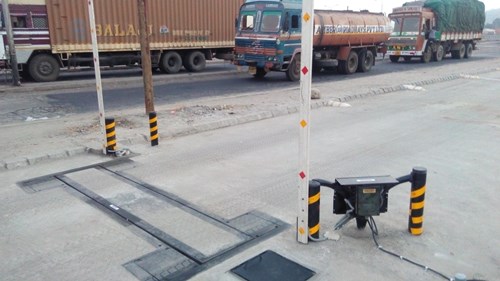

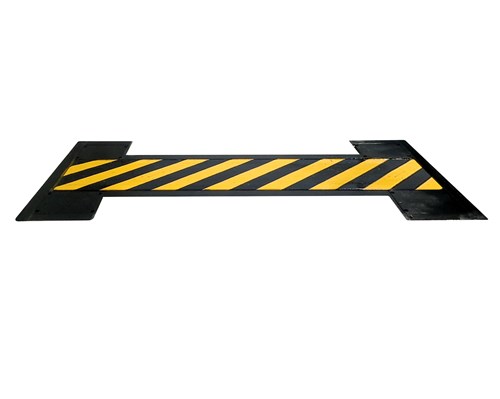

The WIM is a load cell based system that measures the axle weight of vehicles traveling between 5 and 10 kmph to estimate the vehicle weight. This system can be used to check the weight of vehicles traveling on the highway. It will determine if a vehicle is overloaded or falls outside load limits and needs to be screened for static weight.

Standard Features

Length: 7 m*
Width: 3, 3.5 and 4 m*
Capacity: 30,000 kg*
Concentrated Load Capacity: 30,000 kg
Dual Tandem Axle (DTA) Rating: 30,000 kg
Display Resolution: 10 kg
Safe Overload: 150% of rated capacity
Accuracy: +/- 2% of rated load
*Custom capacity, length and width available by request

Optional Features

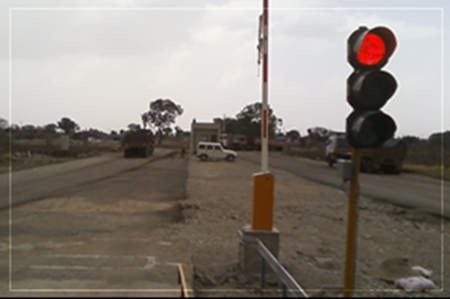

The WIM can be customized with optional features, including traffic signals, data management software, printers and boom barriers. Contact a certified Rice Lake Weighing Systems India dealer to discuss the best features for your application.

Concrete deck is better:

• Rugged
• Anti Corrosive
• Maintenance. free
• Value for Money
• Strongest Weigh Bridge on Earth

“ Better than steel deck in following locations”

• Chemical plants
• Petrochemical plants
• Fertilizer Plants
• Coastal area
• Marine Environment
• Ports
• Saline atmosphere
